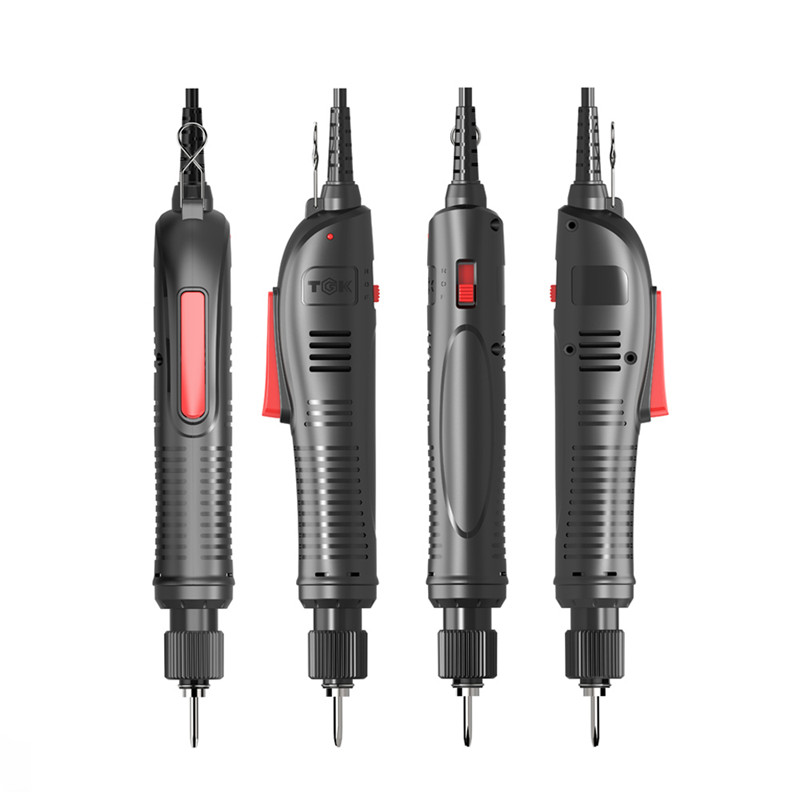

PS515 Special Design for High Quality Fully Automatic Portable Torque Electric Screwdriver for Assembly Tools

Short Description:

We have a highly efficient team to deal with inquiries from customers. Our goal is “100% customer satisfaction by our product quality, price & our team service” and enjoy a good reputation among clients. With many factories, we can provide a wide range of Rapid Delivery for High Quality Portable Mini Torque Electric Screwdriver for Assembly Tools PS515, Influenced from the swift building marketplace of the quick food and beverage consumables all over the planet , We’re wanting forward to operating with partners/clients for making good results together.

Send email to us Whatsapp Email

Product Detail

Video

Product Tags

PS515 Special Design for High Quality Fully Automatic Portable Torque Electric Screwdriver for Assembly Tools, Certainly, competitive price, suitable package and timely delivery will be assured as per customers' demands. We sincerely hope to build business relationship with you on the basis of mutual benefit and profit in the very near future. Warmly welcome to contact us and become our direct cooperators.

Product Name	PS515 High Quality Fully Automatic Portable Torque Electric Screwdriver for Assembly Tools
Input voltage	AC100-240V
Rated power	35W
Power Adapter	EP860E
Torque range	0.2-1.2n*m
Torque adjustment method	Adjustment sleeve adjustment (up becomes larger, down becomes smaller)
Range of rotation	900-1350rpm
Speed adjustment method	By turning the knob of the power adapter
Interface	GB 3 plug
DC Cable Specifications	3Px0.5mm²x1.8m
Power Cord Specifications	3Px0.5mm²x0.5m
Start method	Press the red lever to start, release to stop
Direction switch	Third gear (up: reverse; middle: stop; down: forward)
Batch size	Compatible with all TGK φ5 wind batches (6.35mm hexagon) specification batches
Batch installation	Press the locking sleeve, align the card slot into the batch nozzle, release the locking sleeve
Motor	555 motor (flat shaft)
Main feature	When the torque reaches the set value, the motor stops rotating, effectively preventing the screw from slipping
	Ergonomic handle, comfortable to hold, no fatigue during long-term work
	Just touch the start-stop switch, which saves time and effort and improves efficiency
	The torque is adjusted steplessly from small to large, and the torque is accurate
	Three-speed directional switch, easy to remove and fasten screws, convenient and fast

TGK PS Series Electric Screw Driver

Electric Screwdriver PS Series Intelligent series Performance:

1. New intelligent electric screwdriver with counter series is one compact of LED counter and screwdriver. Easy to operate, suitably used on production line and effectively control numbers of fastening screws and operation quality.

2. Adopt selection mode for the worker is easy to set up complet function according to needs of work and make it automatically to inspect the precision of fastening screws and avoid any mistake.

3. High-performance low-voltage brushless motor is used and produces no dust, low noise and durability, Maintenance is not necessary.

4. Non-contact switch is used to provide a durable life in which there is no necessity to replace the item often.

Ergonomic size, high temperature durable, weak vibration, good grip, new appearance, light weight, easy to operate for a long time without fatigue, improve efficiency.

5.High precision of the torque, with step-less torque adjustment, simple operation, it can be generally used for electrical and electronic lightening products,home appliances, toys, computer/ phone/ watches accessories and other processing and assembling operations.

6.Certification: CE,CCC,and ROHS

Our advantage:

1.Long life span, free maintenance, no interference, low noise, low temperature rising, environmental friendly and energy effective.

2.Adopt high performance, powerful, DC motor with carbon brush. Passed 10 million times safety test, precision torsion, sturdy and durable.

3.Torsion signal output(Signal output stop when reach the default torsion value, the screw driver stop automatically, protect the product from damaging, no screw to be stripped.

4.Suitable for hand operation, especially for production assembly lines.

5.Mainly used for 3C,4C products, such as computers, communication products, network products, white digital appliance, auto electronics etc.

6.Obedience to Taiwan excellent manufacturing technology, quality assurance, precision industrial fastening tool.
Choosing TGK, you will get not only the products, but also the better service, and better operating mode.

OEM &ODM Service

Factory accept OEM and ODM production and we follow five-step quality inspections in order to ensure product quality.

Accept Packaging, Color, Logo, Side sticker, Manual, Plug type, Power adapter and so on customize
